3/4 extension ball-bearing slide (2 pieces), front disconnect
LG = slide length.
K = travel length.
CN = load rating (kg/pair).
Sold by the unit.
Full extension ball-bearing slide (3 pieces), front disconnect and positive lock
LG = slide length.
K = travel length.
CN = load rating (kg/pair).
Sold by the unit.
Full extension ball-bearing slide (3 pieces), front disconnect and positive stop
LG = slide length.
K = travel length.
CN = load rating (kg/pair).
Sold by the unit.
Heavy duty, full extension ball-bearing slide (3 pieces), front disconnect and positive stop
LG = slide length.
K = travel length.
CN = load rating (kg/pair).
Sold by the unit.
Full extension ball-bearing slide (3 pieces), soft-closing
LG = slide length.
K = travel length.
CN = load rating (kg/pair).
Soft-close slide.
The drawer can be detached by pushing the lever while pulling the drawer out.
Soft-closes at 20 mm distance from closed position (LG = 300-350 mm) or 36 mm distance from closed position (LG = 400-700 mm).
The maximum width of the drawer is the slide length (LG) + 200 mm.
Sold in pairs.
Produced mainly in stainless steel, for a complete description of the materials contact us.

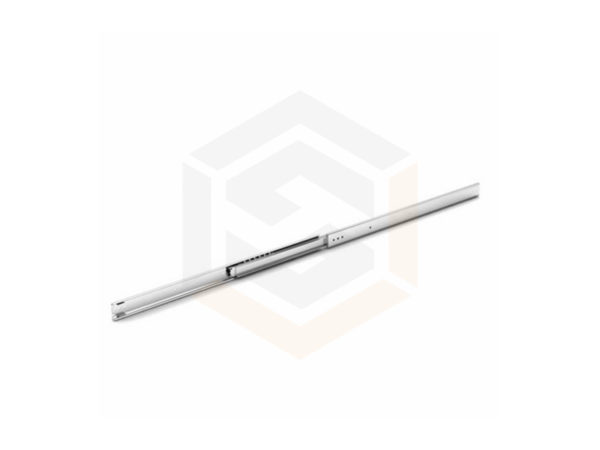

Telescopic slides : Stainless steel slides
The range of stainless steel slides consists of 3/4 extension ball-bearing slides - front disconnect, full extension ball-bearing slide - soft closing, heavy duty full extension ball-bearing slide - front disconnect and positiv stop. They measure between 300mm and 711.2mm long. Our telescopic slides are made of stainless steel 304. They are sold individually.
